Smart 5MP IK10 PoE Surveillance System with Smart Detection
5MP HD with Spotlight Night Vision
IK10 Vandal-Proof
Person/Vehicle/Animal Detection
8-Channel NVR with 2TB HDD
Expand Your System with Reolink Compatibility
Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.
Crystal-Clear Footage, Day and Night
Capture flawless images in 5MP and adapt to the darkness with diverse night vision modes: illuminate the night with motion-activated or always-on color night vision, or switch to traditional infrared for discreet surveillance. With adjustable brightness and a warm 3000K glow, the spotlight ensures comfortable viewing and vivid colors.
Smart Detection for Peace of Mind
Experience fewer false alarms with our intelligent detection system. Accurately distinguish between people, vehicles, and animals, ensuring you only receive relevant alerts. Get instant push notifications directly to your phone, keeping you informed and in control, all without any monthly fees.
Speak and Talk in Real Time
Communicate directly through your camera with clear two-way audio, accessible via the Reolink App or Client. Hear what's happening and respond in real-time, whether to greet a visitor or warn off an intruder.
Dual Deterrents
Enhance security with built-in spotlight and siren deterrents. Illuminate the scene and expose unwanted guests. At the same time, trigger a loud alarm to scare off intruders and alert neighbors.
Weatherproof Reliability with IP67 Rating
Rain or shine, your security remains uncompromised. With an IP67 weatherproof rating, these cameras are built to withstand the elements, making them suitable for both indoor and outdoor use. Install them confidently knowing they'll continue to protect your property, no matter the weather conditions.

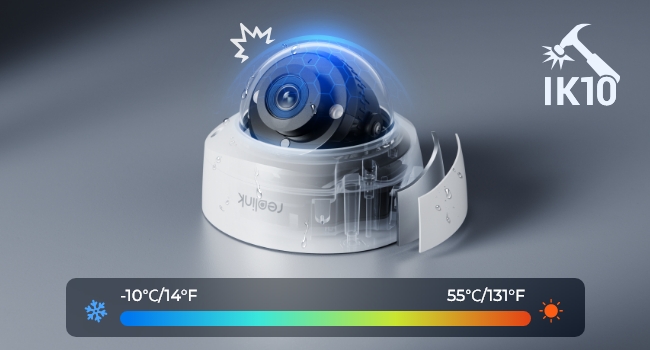

Rugged and Discreet
An IK10-rated housing with a small form factor allows for flexible placement in tight spaces or inconspicuous locations, blending seamlessly with its surroundings. Remain discreet and undetected, with a solution that is steadfast and tamper-proof.
| NVR | Smart PoE Video Recorder: RLN8-410 |
|---|---|
| IP Video Input | PoE IP Camera x 8 |
| Image Sensor | 1/2.7" CMOS sensor |
| Video Compression | H.265/H.264 |
| Color Night Vision | With spotlights: 2pcs/3W/3000K (adjustable) |
| Power Port | DC power port |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Camera Waterproof | IP67 |
|---|---|
| Video Resolution | 2560×1920 (5 Megapixels)@25FPS |
| Lens | f=2.8mm F=2.0 |
| Infrared Night Vision | Up tp 30 meters(100ft); LED: 2pcs/2W/850nm (auto-switching with IR-cut filter) |
| Audio | Two-way audio |
| Field of View | Horizontal: 100° Vertical: 75° Diagonal: 130° |
| Operating Humidity | 10% to 90% |
Video Compression: H.265/H.264
Frame Rate:
Main stream: 2fps - 25fps (default: 25fps)
Sub stream: 4fps - 15fps (default: 10fps)
Stay Connected and in Control
Real-Time Alerts
Receive instant push notifications and email alerts whenever motion is detected, ensuring you're always aware of what's happening.
Easy Live View
Monitor multiple cameras simultaneously on a single screen, giving you a comprehensive view of your surroundings.
Smart Playback
Filter recordings by type (motion, person, vehicle, animal) to save time and easily locate specific events.
Customizable Detection Zones
Tailor your motion detection to focus on specific areas of interest, ensuring you only receive alerts when it matters most.
Expand Your System with Reolink Compatibility
Your security needs are unique, and your system should be too. This system offers exceptional expandability, seamlessly integrating with a wide range of Reolink cameras. Choose from various resolutions and styles, including PoE cameras for wired connections and Wi-Fi cameras for flexible placement.
Your Security Command Center with NVR
Comprehensive protection backed by our NVR-centered system. Efficiently manage your cameras from a single interface, adapting to various installation scenarios
8-Channel NVR Pre-installed with a 2TB HDD
Four 5MP Cameras High-Resolution PoE Cameras Included
Expandable up to 16TB Local Storage Capacity
Hassle-Free Setup: Plug and Play PoE
Experience the convenience of plug-and-play installation with our PoE (Power over Ethernet) system. No need for separate power cables for each camera.
Step 1. Set up the NVR
Connect the NVR to a power source and then to your router.
Step 2. Set up the Cams
Use an Ethernet cable to connect each PoE camera directly to the NVR.
Step 3. Scan & Preview
Scan the NVR's QR code using the Reolink App and view your live camera feeds.
