Important Notes:
- Reolink NVRs with the hardware version of N2MB02/H3MB18/N3MB01 support the smart detection/playback for the RLC-510A. You can verify the compatibility via the System Information of the NVR.
- The RLC-510A IP camera can be added to some third-party software/NVR such as Blue Iris or Synology. But currently, we could only ensure the full compatibility between this camera and the Reolink NVR/software.
| Image Sensor | 1/2.7" CMOS Sensor |
|---|---|
| Lens | f=4.0mm fixed, F=2.0, with IR Cut |
| DC Power | DC 12.0V/1A, <12W (Power Adapter NOT included) |
| Record Mode | Motion-triggered recording (default); scheduled recording |
| Field of View | Horizontal: 80° Vertical: 42° |
| Storage | MicroSD card slot (support up to 256GB) |
| Code Rate | Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps) Substream: 64Kbps - 512Kbps (defa |
| Browser Supported | IE, Edge, Chrome, Firefox, Safari |
| Video Resolution | 2560 x 1920 (5.0 Megapixels) |
|---|---|
| Night Vision | 30 Meters (100 ft) (LED: 18pcs/14mil/850nm) |
| Smart Alarm | Person detection; vehicle detection; motion detection |
| Smart Home | Google Assistant |
| PoE Standard | IEEE 802.3af, 48V Active |
| Audio | Built-in microphone, Audio Recording |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |

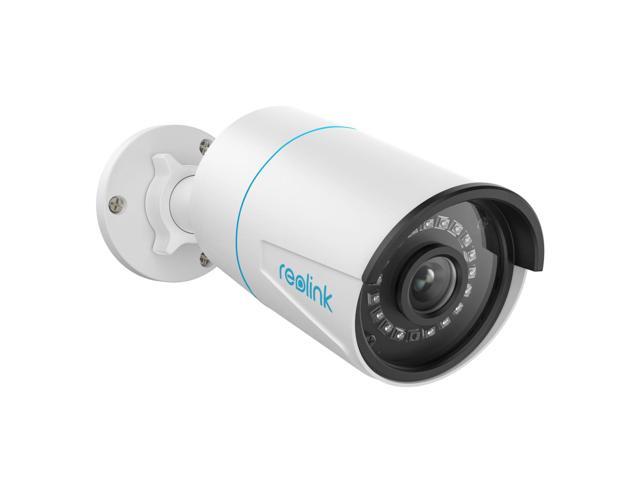

Boasting a high resolution of 2560x1920, RLC-510A security IP camera can capture crystal clear videos with fine details. With the built-in microphone, it also picks up ambient sound for an extra layer of security.
Powered by smart motion detection technology, RLC-510A can distinguish people and vehicles from other objects. Get alerts when a suspicious person or car is loitering around your house or store. Unwanted alarms from spiders or swaying trees are a thing of the past.
RLC-510A IP camera supports 24/7 continuous, motion-triggered and scheduled recording. All 3 types of video can be saved in the microSD card, Reolink NVR or FTP server. Choose a way you like and enjoy customized security.

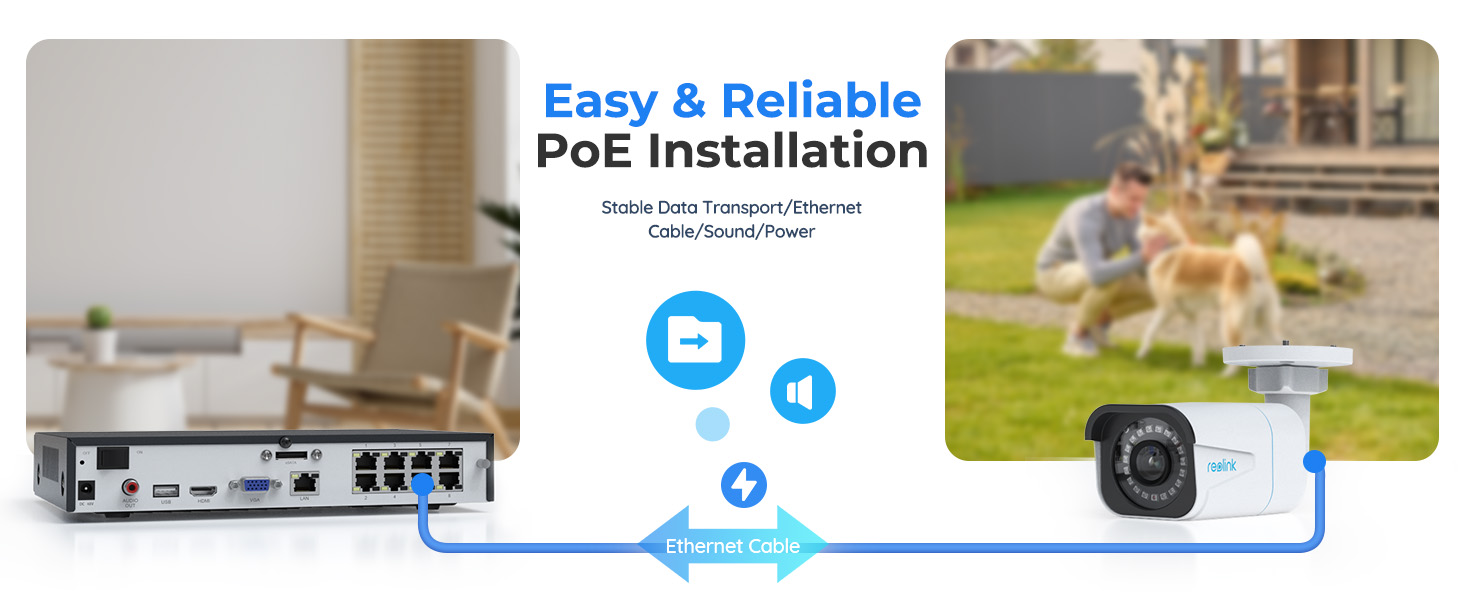

RLC-510A PoE security IP camera uses a single cable to transmit both data and power. Simplified wiring means easier and clean installation. It is the best choice for DIY enthusiasts.
Note: Reolink NVRs are recommended for best performance.
The rugged housing and body make Reolink RLC-510A IP camera waterproof. It works perfectly both inside and outside your house, in any harsh weather conditions.
This IP camera will send you real-time push notifications or alert emails to your device, whenever an unusual movement is detected.
It can't be easier to control this IP camera with Google Assistant. Just say "Ok Google, show me the backyard" and the live feed will appear on your Google Nest Hub or Chromecast-enabled TVs.
Note: This feature is incompatible when camera is connected to NVRs.
Use your security camera to shoot time-lapse videos. Keep track of your 3D printing, see whole construction process in a few minutes, or capture beautiful views from sunrise to sundown. Easy to use and fun to share with others.
Note: This feature is incompatible when camera is connected to NVRs.
